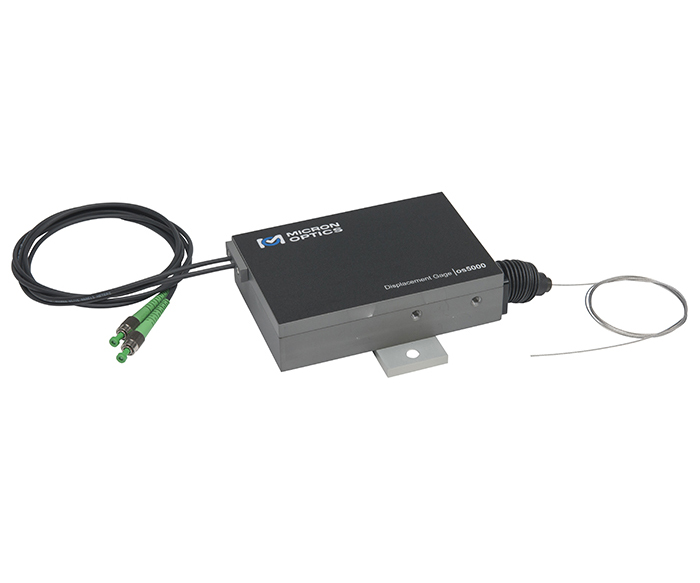

os5000
os5000光纤光栅位移传感器，用于测量小于12mm的微小位移变化。比如土木和岩土结构的微小位移。
-
0.000.00
-
os5000光纤光栅位移传感器，用于测量小于12mm的微小位移变化。比如土木和岩土结构的微小位移。
产品特性
高达12mm的测量范围
坚固的铝外壳，适合户外使用
通过与传统电传感器同样严格的质量标准
连接器内部有保护
一根光纤可以串联多个光纤光栅传感器
工作范围内进行温度补偿
响应时间快，测量稳定，分辨率高
在各种应用领域都能简单方便安装
产品应用
结构（桥梁，水坝，隧道，矿山，建筑物，石油平台）
能源（风力涡轮机，油井，管道，核反应堆，发电机）
运输（铁路、火车、公路、特种车辆、起重机）
船舶（船壳、甲板、集装箱）
航空航天（飞机、复合材料结构、风洞、静态和动态试验）
Performance Properties | os5000 |
Measurement Range | 0 - 12 mm |
Resolution | 0.02% F.S. |
Linearity | 0.026 mm (.22% F.S.) steady-state |
Operating Temperature Range | -40 to 80°C |
Environmental Ingress | Suitable for wet, high humidity environments (IP67) |
Fatigue Life | >50x106 cycles @ 30% F.S. |
Physical Properties | |
Dimensions | See Diagram Below, m |
Weight | 954 g |
Construction | Anodized Aluminum |
Lead Cable Length | Customer Specified |
Lead Cable Type | oc1110, 3 mm Tactical Buffered Cable |
Mounting | Supplied Mounting Plate (see drawing) |
Optical Properties | |
Peak Reflectivity (Rmax) | > 70% |
FWHM (- 3 dB point) | 0.25 nm (± .05 nm) |
Isolation | > 15 dB (@ ± 0.4 nm around center wavelength) |
Performance Properties | os5000 |
Measurement Range | 0 - 12 mm |
Resolution | 0.02% F.S. |
Linearity | 0.026 mm (.22% F.S.) steady-state |
Operating Temperature Range | -40 to 80°C |
Environmental Ingress | Suitable for wet, high humidity environments (IP67) |
Fatigue Life | >50x106 cycles @ 30% F.S. |
Physical Properties |
|
Dimensions | See Diagram Below, m |
Weight | 954 g |
Construction | Anodized Aluminum |
Lead Cable Length | Customer Specified |
Lead Cable Type | oc1110, 3 mm Tactical Buffered Cable |
Mounting | Supplied Mounting Plate (see drawing) |
Optical Properties |
|
Peak Reflectivity (Rmax) | > 70% |
FWHM (- 3 dB point) | 0.25 nm (± .05 nm) |
Isolation | > 15 dB (@ ± 0.4 nm around center wavelength) |
